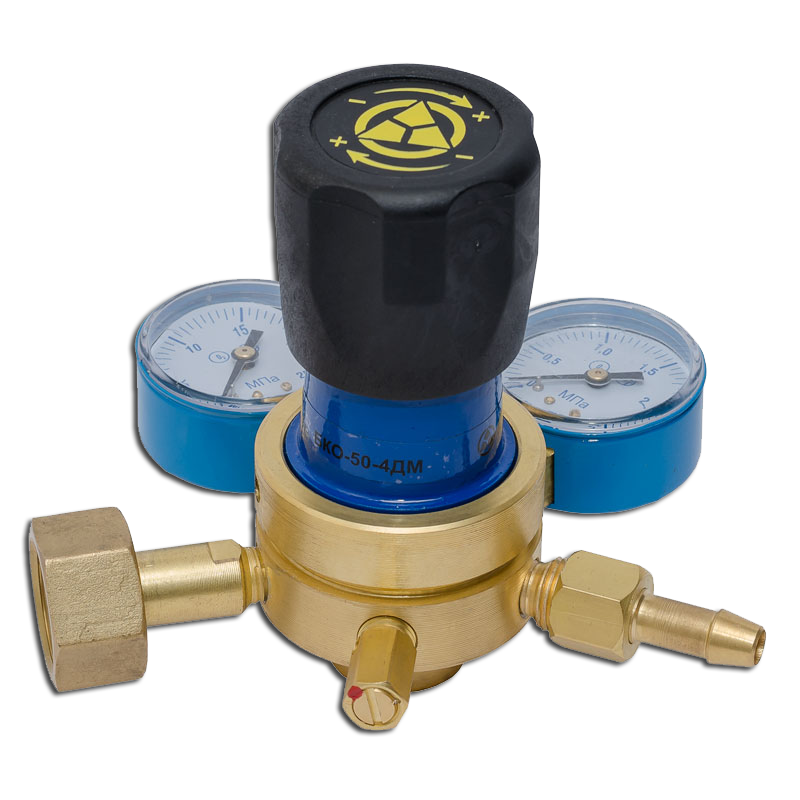

Oxygen pressure regulator BKO-50-4DM

BKO-50-4DM – increased accuracy of pressure maintenance and resistance to freezing! It is designed to reduce and regulate the pressure of oxygen coming from the cylinder and automatically maintain the working gas pressure Parameters Value Max. gas flow, m3/h 50,0 Max. inlet pressure, bar 200 Max. working pressure, bar 12,5 Overall dimensions no more, mm 160х130х144 Weight no more, kg 1,2 Reliability! Three levels of protection of the reducing unit. Security! The body and fittings are made of brass. Sound notification of safety valve activation in an emergency situation The pressure regulator is manufactured in accordance with the requirements of DSTU ISO 2503:2015. It is allowed to be used for air and inert gases. The autogenous equipment plant “DONMET” uses MP-50 strain-indicating pressure gauges, accuracy class 2.5. Manometers are entered in the State Register of measuring equipment under No. U3253-12. On May 20, 2018, the “DONMET” autogenous equipment plant received a type inspection certificate No. UA.TR.113-0148-18, the validity of which is until May 20, 2028. After the type check, an assessment of the conformity of the manometers to the approved type was carried out, which is confirmed by the certificate No. UA.TR.113-0148/01F-18 and the mark of conformity applied to the manometer. Pressure gauges, which are supplied with DONMET products, are tested by a state-authorized enterprise that confirms the certificate of compliance with technical regulations (module B), and are checked in batches with the indication of the individual numbers of the pressure gauges, which certify the certificates of compliance (module F) and have the corresponding holograms on the gauge case.
