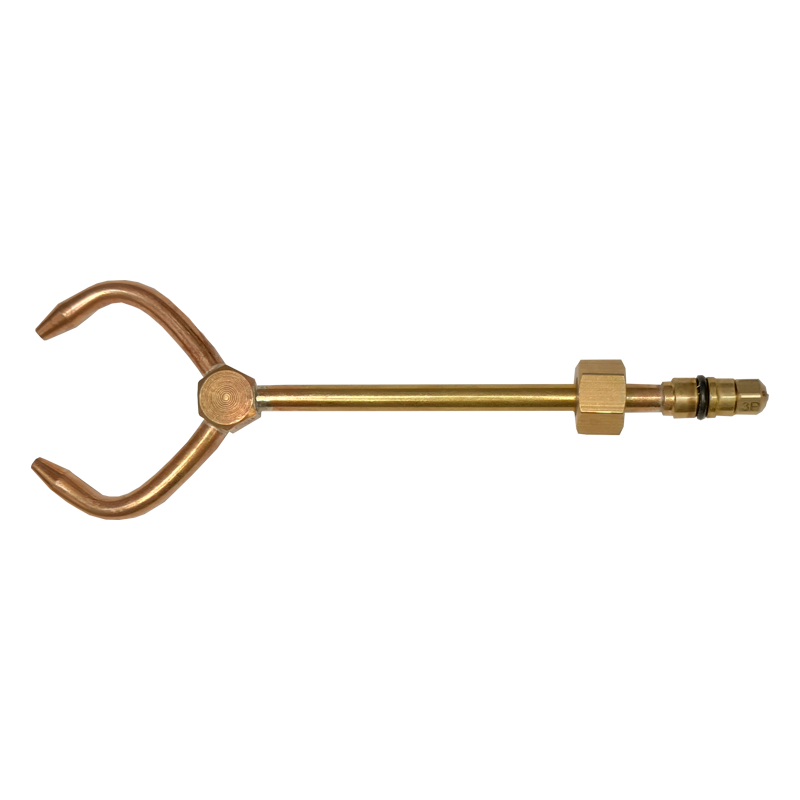

Double tip assembly

The tip assembly is an integral part of the G3U (propane-oxygen) type torch. It is designed for heating, soldering and heat treatment of metallic and non-metallic materials. The tip has a mixing chamber and an injector for forming a gas-oxygen mixture of the required composition and feeding the mixture to the nozzles. The tip assembly is manufactured in accordance with the requirements of design documentation G24.002-237.06.000-30. Overall dimensions no more, mm: 204x90x22 Weight, no more than 0.11 kg Materials used in the tip: brass LS59-1 GOST 2060 GOST 617 copper pipe TECHNICAL SPECIFICATIONS Pressure, kgf/cm2 : – oxygen 1.5 – 2.5 – propane-butane 0.1 – 1.0 Consumption, l/h.: – oxygen 420 – 890 – propane-butane 120 – 254
