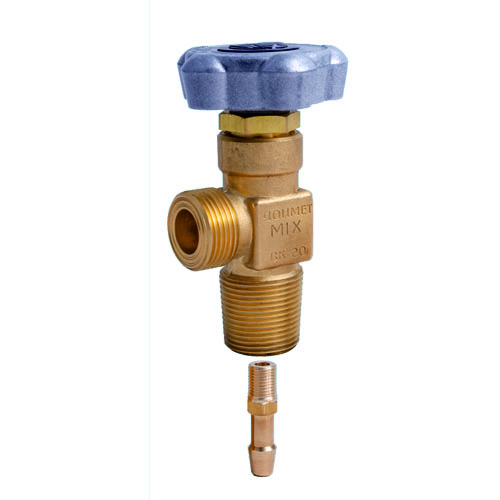

Cylinder valve VK-20 MIX

Cylinder valve VK-20 MIX with a nipple for a siphon tube No. 942.900.17 The valve with a siphon tube is a closing element of the cylinder during filling, storage and consumption of gas through it, intended for installation on cylinders of welding mixtures for effective mixing of gases and formation of a homogeneous mixture. It is most often used to pass argon through liquid carbon dioxide in the process of filling the cylinder, during which carbon dioxide changes into a gaseous state, mixes well with argon and forms a homogeneous mixture. And also for mixing compressed gases of different densities and removing the liquid phase from the down of the cylinder. The highest working gas pressure, bar 200 Internal diameter, mm 4 Inlet connection W27,8 Outlet connection G ¾-B Overall dimensions, no more 130х62х60 Siphon tube D 8mm Weight no more, kg 0,57 Term of operation A minimum of 15,000 cycles   The valve is allowed to be used in contact with crypto products (N, Ar, O2, Kr, Xe …) and mixtures based on them. 1 – Valve 942.300.02; 2 – Spindle 942.901.00; 3 – Sealing ring; 4 – Valve body; 5 – Nut; 6 – Fywheel gasket; 7 – Flywheel; 8 – Gasket; 9 – Ring 009-012-19; 10 – Screw M4x10; 11 – Washer 4.01.05; 12 – Washer 4 65G; 13 – Plug G ¾; 14 – Conical plug; 15 – Cap; 16 – Nipple (D8mm) 942.920.00 – strong stamped brass body – 100% quality control – availability of spare parts – easy turning of the flywheel – the valve thread is lubricated with a lubricant chemically stable in an oxygen environment at a pressure of up to 450 bar – hydraulic test at a pressure of 300 bar – resistant to temperature changes
