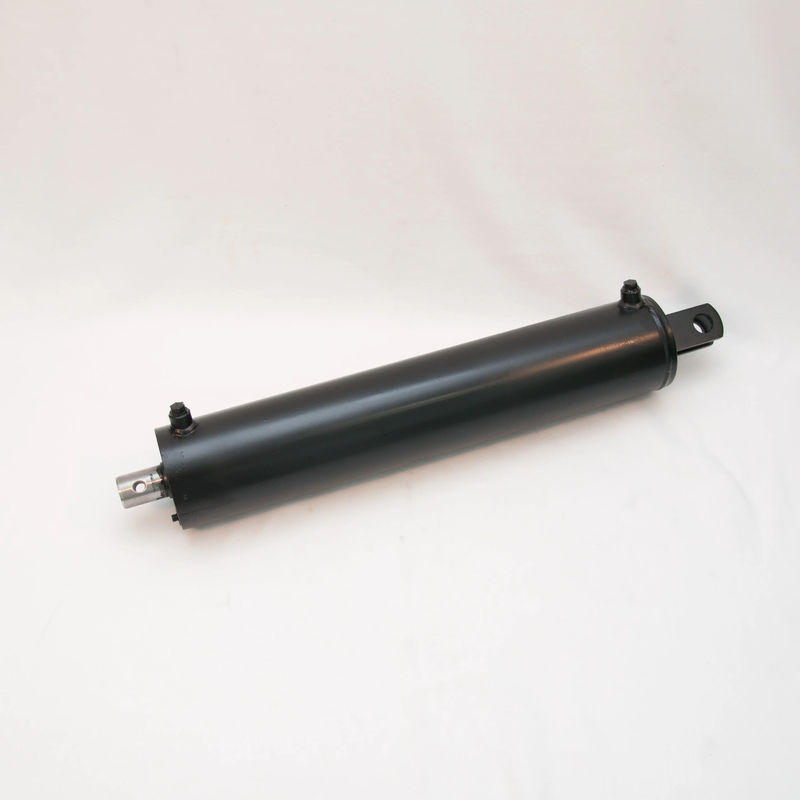

Hydraulic Log Splitter Cylinder 5″ Bore x 24″ Stroke, Clevis Mount, OEM Replacement

Description5″ Bore x 24″ Stroke Hydraulic Log-Splitter Cylinder – OEM Replacement for Tractor Supply Co., Huskee, SplitMaster, Oregon, SpeeCo, and othersThis cylinder is a direct replacement for many OEM double-acting, clevis-mount cylinders. Common OEM no-modification-needed replacement for: Tractor Supply Co., Huskee, SplitMaster, Oregon, SpeeCo and many others. See diagram (above) for detailed specs and dimensions. We are a USA-based designer, importer, and seller.Description:Cylinder produces approximately 35 tons splitting force at 3500 p.s.i.; 39 tons @ 4000 p.s.i. (max.) Double-acting (2 ports, forward and reverse action) Rebuildable (seals can be replaced) Black powder coatShips via UPS ground to the lower 48 states only!!Specifications (See spec sheet for detailed measurements!): 2″ chrome-plated rod end is machined down to 1-3/4″ to fit wedge; 9/16″ hole for wedge mountingClevis ears mount on either side of beam: spacing is 7/8″; accepts up to 3/4″ beam Clevis-mounting holes accept up to 1-1/8″ pinExtended length: 56-1/2″Retracted length: 32-12″ 1/2″ NPT hydraulic ports4000 maximum operating pressure5-1/2″ OD (outer dimension)
