APSmart Dual-Core RSD Transmitter Outdoor Kit by APSystems

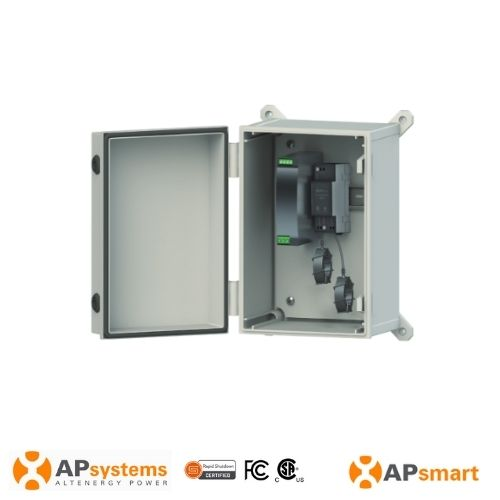

Description This is the APSmart Dual-Core RSD transmitter outdoor kit by APSystems. This is the complete kit including dual core transmitter, power supply, and IP65 latched enclosure. This SunSpec Certified device sends a ‘keep alive’ signal through your DC solar array cables. When proper voltage is not detected the Transmitter stops sending the keep-alive signal to the RSD device, initiating module-level rapid shutdown sequence. For SunSpec compliance, pair this transmitter with the APSmart PLC receivers (single or dual module versions) which get placed on the back of your solar modules. The system maintains constant communication between the RSD and Transmitter-PLC, constantly monitoring voltage and current. Model: 408005 This 29mm ID dual-core model is suitable for up to 30 PV strings. APSmart Dual Core RSD Transmitter Features Safe Meets NEC 2017 (690.12) requirements Meets SunSpec requirements Reliable Transmitter-PLC provides heartbeat signal to RSD receivers. Signal stops when AC power is absent, thereby shutting-down your system at the module level. Single Core Transmitter Specifications In Brief Electrical Input Voltage : 12VDC InputCurrent : 0.8A Communication Signal : PLC Power Supply (Residential Version – not included) Input : 85-264VAC Output : 12VDC Dimensions : 90mmx17.5mmx58.4mm Note… Many inverters offer a 12VDC auxiliary power port which can act as the power supply for this transmitter. If not, then we recommend the complete Outdoor Kit which includes the transmitter, power supply, and IP65 hinged enclosure box. Core Data (29mm Core) Max Current : 150A Max System Voltage : 1500VDC Internal Opening for Wires / Outside Dimensions : ~29mm/65mm Max Supported PV Modules per String : 30 modules Number Of Strings Per Core DC Cable Diameter (without connector) : Φ5.9mm : ≤15 Strings Φ6.35mm : ≤15 Strings Φ7mm : ≤14 Strings Φ8.6mm : ≤10 Strings Outdoor Enclosure Details Dimensions (WxHxD) : 198.5mm x 298mm x 179mm Environmental Rating : IP65 Features & Compliance Safety : NEC2017 & 2020 (690.12); UL1741; CSAC22.2 No.330-17 EMC : FCC Part 15; ICES-003 SunSpec Certified (when used with APSmart receivers) Downloads RSD Transmitter Spec Sheet Visit the APSmart website for more info, user manuals, and installation guides Other Available APSmart Options… Single Core Transmitter Only (single core, model 406001) Dual-Core Transmitter Only 406000 Outdoor Kit – Single Core (single-core, model 408006) – Includes PLC transmitter unit, power supply, and latched/hinged IP65 outdoor enclosure Receiver Units… Single Module Double Module APSmart Dual-Core RSD Transmitter Outdoor Kit by APSystems
