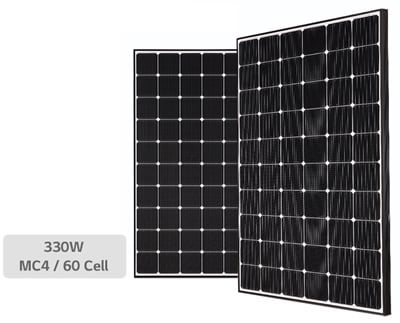

LG330N1C-A5 : 330W LG NeON2 Solar Module

Description The LG330N1C-A5 is LG’s NeON2 330W Solar Module. LG’s popular black-framed module is in the upper class of 60-cell modules, and is a leading choice for solar systems where the highest quality & efficiency are desired. Model LG330N1C-A5 Mechanical Properties Cells 6 x 10 Cell vendor LG Cell type Monocrystalline / N-type Cell dimensions 161.7 x 161.7 mm / 6 inches # of busbar 12 (Multi Wire Busbar) Dimensions (L x W x H) 1686 x 1016 x 40 mm / 66.38 x 40 x 1.57 inch Front Load 6000Pa Rear Load 5400Pa Weight 18 kg Connector type MC4 Junction box IP68 with 3 Bypass Diodes Cable 1000 mm x 2 ea Glass High transmission tempered glass Frame Anodized aluminum LG330N1C-A5 Electrical Specifications (STC*)… Maximum Power (Pmax) : 330 MPP voltage (Vmpp) : 33.7 MPP current (Impp) : 9.8 Open circuit voltage (Voc) : 40.9 Short circuit current (Isc) : 10.45 Module efficiency (%) : 19.3 Operating temperature (°C) : -40 ~ 90 Maximum system voltage (V) : 1000 Maximum series fuse rating (A) : 20 Power tolerance (%) : 0 ~ 3 * : STC (Standard Test Condition): Irradiance 1,000 W/m², Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m² in relation to 1000W/m2 is -2.0% Download the Specifications Sheet … LG330N1C-A5 : 330W LG NeON2 Solar Module
