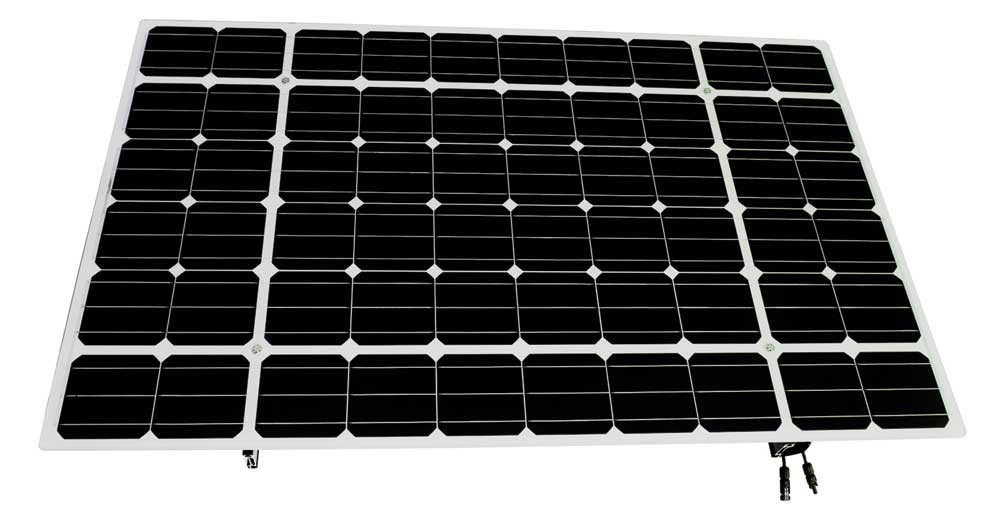

280W Lumos LSX Frameless Solar Module

Description The Lumos LSX is the revolutionary frameless solar module that has bridged the gap between architecture and energy. LSX Frameless Solar Modules are an elegant solar generating solution for the most aesthetically conscious projects. The current model LSX280-60M-C frameless solar panel blends well with various roofing materials, providing a far less mechanical appearance. The dedicated LSX rail mounting system hides wiring & connections as well as the rails themselves, for a clean, low-profile installation. MADE IN THE USA! Price includes shipping within Canada Lumos LSX Key Features Frameless & Low Profile The low profile of LSX frameless modules sets them apart from any other module on the market. 6mm Thick Glass By achieving Class 4 Hail Rating the LSX module is the most impact resistant in the industry Through-Bolt Mounting Method Securely mount Lumos LSX modules through the module glass to maintain the aesthetically pleasing low-profile appearance. Unlike traditional mounting systems, each LSX module is individually mounted, expediting installation & maintenance. Integrated Rail System Ensures proper module alignment every time and LSX Rail can be fastened to virtually any structure with minimal sub-components. Integrated Wireway The built-in LSX Rail wireway allows for easy wire management without compromising aesthetics. Seam Weatherproofing When used as a canopy roof, then Lumos LSX is the only module system in the industry that can be sealed with minimal hassle. Lumos LSX solar modules are integrated into… Roof Mounted Home Power Systems Freestanding Carports Deck & Gazebo Awnings Shelters & Canopies Building Integrated PV (BIPV) & Custom Designs SolarScapes   Lumos LSX Specifications Model : LSX280-60M-C Rated Power @ STC : 280W Peak Power Voltage (Vmp) : 31.97V Maximum Power Current (Imp) : 8.76A Open Circuit Voltage (Voc) : 39.37V Short Circuit Current (Isc) : 9.25A Module Efficiency : 16.2% Operating Temperature : -40 °C to 85 °C Maximum System Voltage UL : 1000 V / IEC 1000 V Maximum Series Fuse Rating : 15 A Power Tolerance -0/ 3% Solar Cell : Monocrystalline 6” x 6” (156 mm x 156 mm) Number of Cells : 60 (6 x 10) Bypass Diodes : 3 Module Dimensions : 65.5” x 41.0” x 1.1” (1664 mm x 1040 mm x 27 mm) Module Area : 18.65 ft2 (1.73 m2 ) Module Weight : 62.6 lb (28.4 kg) Module Weight / Area : 3.36 PSF (16.40 kg/m2 ) System Weight / Area Portrait : 3.77 PSF (18.41 kg/m2 ) Landscape : 4.03 PSF (19.68 kg/m2 ) Front Glass : 0.24” (6 mm) FT Low-Iron PV Glass Backsheet : Clear Light Transmittance : Portrait = 12% Landscape = 10% LSX Rail Assembly Options : 3, 4, 5 & 6 Portrait Module Lengths 2 & 3 Landscape Module Lengths Output Cables : 12 Awg. PV Wire and MC4 Compatible Connectors Static Load :  -50/ 113 PSF (-2400/ 5400 Pa) Hail : Class 4 Hail Rating Max. Diameter 2” (51 mm) at 72 mph (32 m/s) Module Type (Fire) : Type 1 Warranty : 10 years at 90% of rated power output 25 years at 82% of rated power output Certifications : UL 1703 IEC 61730 IEC 61215 UL 1703 Listings CEC (USA) FSEC (USA) CEC (AU) Mounting Lumos LSX Solar Modules Lumos LSX modules are designed to be mounted using LSX Rails. These rails feature integrated wireway, and pre-drilled through-bolt locations to make installation fast & easy. Each LSX panel is mounted individually, so unlike standard arrays, a Lumos LSX module can be removed from the array racking without disturbing the panels on either side of it. See the the Lumos GSX model on a major retail project in Edmonton! 280W Lumos LSX Frameless Solar Module
