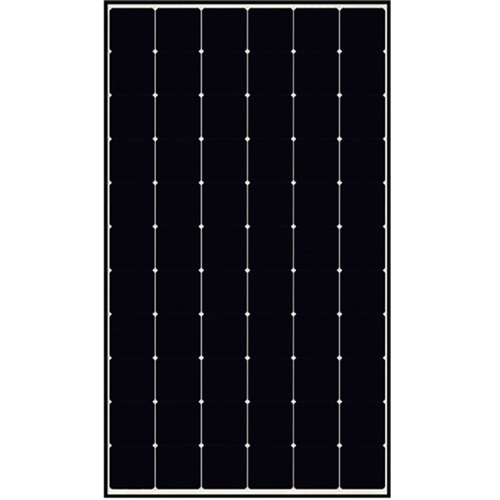

CS1H-340MS : 340W Solar Module by Canadian

Description This is the popular CS1H-340MS solar module by Canadian Solar. This 340W, black-framed module is one of the best values for off-grid and grid-tie residential applications. Priced aggressively, folks have this powering their net metering systems, solar well pumps, cabins, and more. Canadian Solar manufactures in their plants in several countries, but these modules are produced in their Guelph, Ontario plant, which makes them Canadian Canadians! CS1H-340MS Features This is one of Canadian Solar’s HiDM series. A High Density Mono PERC Module in a 60-cell format that offers high power in a manageable size. MORE POWER Efficiency : Maximize the light absorption area, module ffciency up to 20.5 % Yield In Hot Temperatures : Small temperature coeffcient. MORE RELIABLE Electrically : Lower internal current, lower hot spot temperature Rigidity : Minimizes micro-crack impacts Structurally : Heavy snow load up to 5400 Pa, wind load up to 2400 Pa* CS1H-340MS Specifications In Brief Electrical Nominal Max Power (Pmax) : 340W Operating Voltage (Vmp) : 37.8V Operating Current (Imp) : 9A Open Circuit Voltage (Voc) : 44.5V Short Circuit Current (Isc) : 9.76A Temperature Coefficient (Voc) : -0.29%/C Module Efficiency : 20.2% Mechanical Cell Type : Monocrystalline Dimensions : 1700 x 992 x 35mm (66.9 x 39.1 x 1.38 inches) Weight : 19.2kg (42.3 lbs) Glass : 3.2mm Tempered Frame : Black anodized aluminum alloy Cables/Connectors : 1.3m #12AWG, MC4 Warranty 15yrs : Enhanced product warranty on materials and workmanship* 25yrs : Linear power output warranty* Canadian_Solar-Datasheet-HiDM_CS1H-MS_EN Certifications MANAGEMENT SYSTEM CERTIFICATES* ISO 9001:2015 / Quality management system ISO 14001:2015 / Standards for environmental management system OHSAS 18001:2007 / International standards for occupational health & safety PRODUCT CERTIFICATES* IEC 61215 / IEC 61730: VDE / CE / MCS / JET / INMETRO UL 1703 / IEC 61215 performance: CEC listed (US) / FSEC (US Florida) UL 1703: CSA / IEC 61701 ED2: VDE / IEC 62716: VDE UNI 9177 Reaction to Fire: Class 1 / Take-e-way CANADIAN SOLAR INC. Committed to providing high quality solar products, solar system solutions and services to customers around the world. No. 1 module supplier for quality and performance/price ratio in IHS Module Customer Insight Survey. As a leading PV project developer and manufacturer of solar modules with over 40 GW deployed around the world since 2001. CS1H-340MS : 340W Solar Module by Canadian
